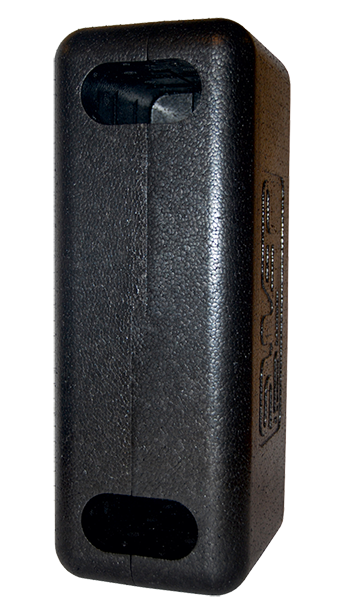

This insulation for heating applications consists of 2 half-shells and is made of expanded polypropylene. Due to the half-shell system, the assembly on the already installed heat exchanger is possible.
Only available for units with all connections on one side.
Technical data | |
Max operating temperature | +110°C |
Thermal conductivity | 0.035 W/mK |
Fire properties | B2 in accordance with DIN4102 |
Material | Expanded Polypropylene |
Specific gravity | 40 kg/m³ |
Size | 5T | 8T | 15 | 10T/12 | 16/26 | 25T/28/80 |
NoP | 20/40 | 20/30/40 | 20/40 | 20/40/60/80 | 40/60/80/100 | 20/30/40/60/ 80/100 |
A mm | 252 | 376 | 524 | 350 | 437 | 587 |
B mm | 136 | 136 | 132 | 179 | 179 | 179 |
F mm | 117/163 | 117/140/163 | 118/163 | 121/168/ 215/263 | 160/206/ 250/296 | 118/137/165/ 212/260/306 |
G mm | 40 | 40 | 40 | 50 | 50 | 50 |
Thickness mm | 29 | 29 | 29 | 29 | 29 | 29 |
